Autel EVDiag Box2 – EV Diagnostics Upgrade Kit 2

Autel EVDiag Box2 – EV Diagnostics Upgrade Kit 2

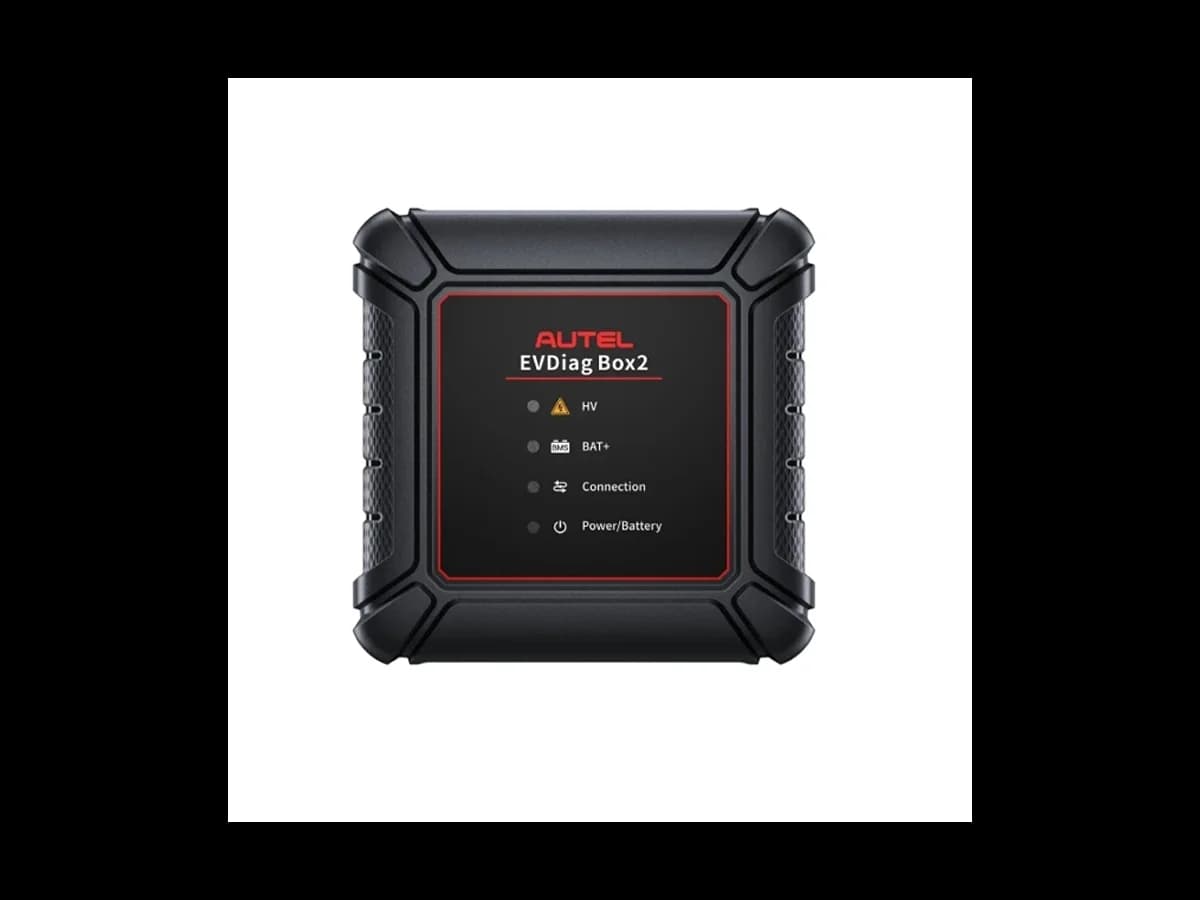

The Autel EVDiag Box2 is the successor to the original EVDiag Box and turns your MaxiSYS tablet into a full-fledged diagnostic station for electric and hybrid vehicles. The box connects to the tablet via Bluetooth or USB and brings all important high-voltage tests together in one platform.

6-in-1 High-Voltage Platform

• Off-board battery diagnostics

• Testing of HV components, with a graphic block diagram of the HV system

• DC voltage measurement (VDC)

• Insulation resistance test

• Equipotential bonding test (equipotential bonding)

• Measurement of battery internal resistance (ACIR)

Battery Tests

• Battery Quick Check: guided test for five critical battery faults, including insulation resistance check.

• SOH Test: SOH Blitz Test for a quick assessment of battery health, and SOH Deep Test for a thorough evaluation.

• Dynamic DCIR Test: monitors voltage, temperature, and internal resistance under load.

Safe High-Voltage Work

Guided procedures for de-energizing and re-energizing the HV system, including measurement according to SAE J1766.

Expandable with MaxiEV

Via the EVDiag Box2, you wirelessly control the Autel MaxiEV CDT100 and MaxiEV BCE100 for charging, discharging, and balancing battery modules, with automatic reporting. The CDT100 and BCE100 are sold separately.

Compatibility

• Autel MaxiSYS Ultra and Ultra S2

• Autel MaxiSYS MS919 and MS919 S2

• Autel MaxiSYS MS909 and MS909 S2

• Connection: Bluetooth or USB

Order from Automotics

Not sure if the EVDiag Box2 works with your tablet or which EV extension you need? Contact Automotics, we'll be happy to help you.
