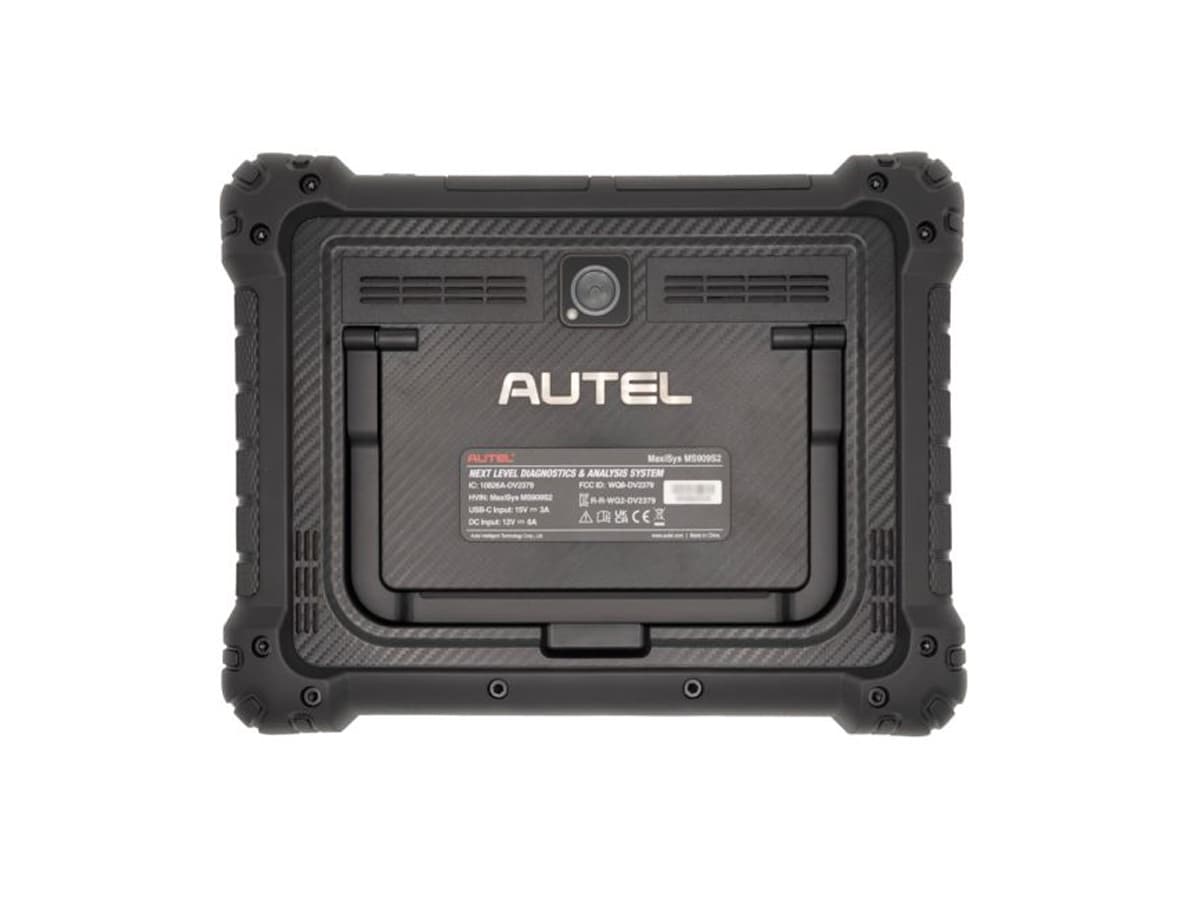

Autel MaxiSYS MS909 S2

Autel MaxiSys MS909 S2 - Professional diagnostic and service tablet with VCI2

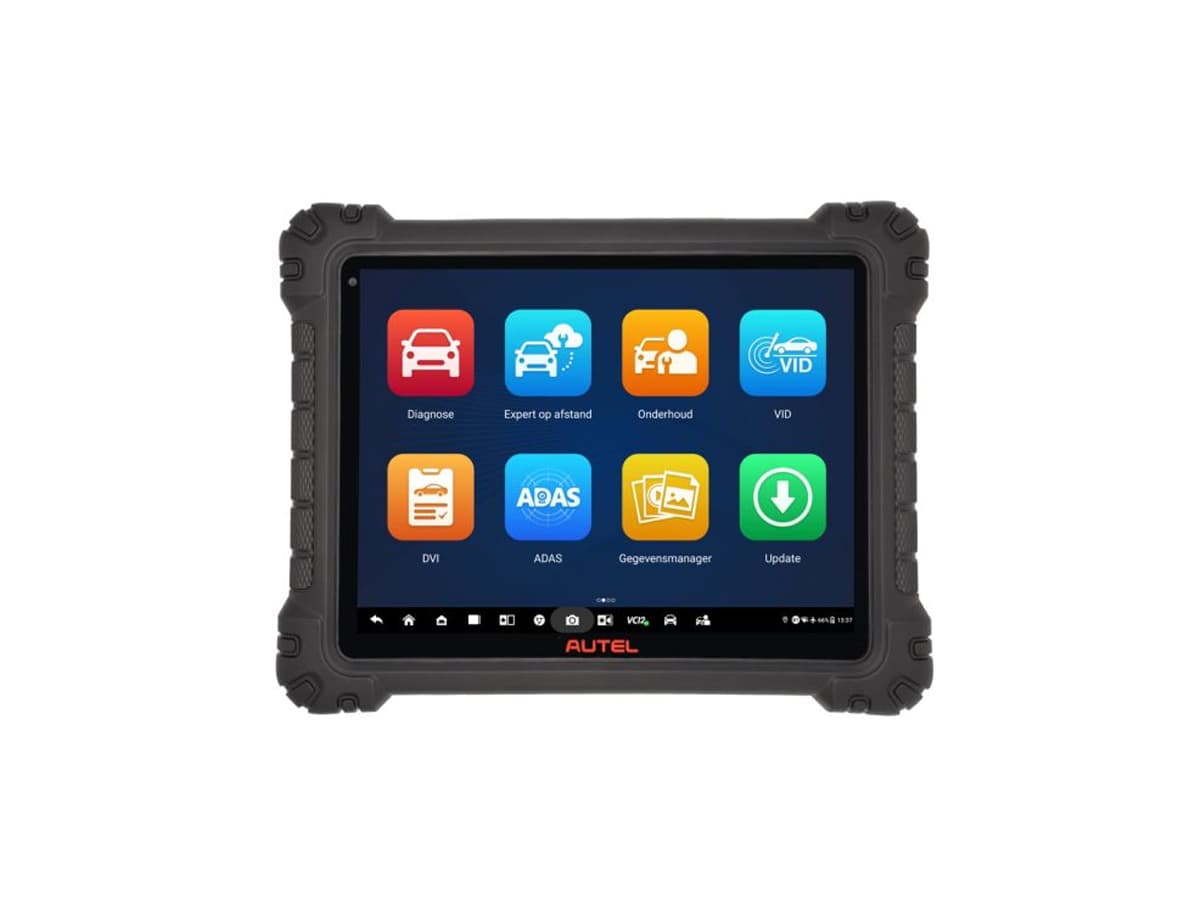

11-inch anti-glare display
The MS909 S2 is equipped with an 11-inch anti-glare touchscreen (2176×1600), which provides a clear and uncluttered view. Live data, ECU topology and fault codes can therefore be easily and clearly analyzed.

Powerful performance
Under the hood, the MS909 S2 has a 2.7GHz 8-core processor, 12GB of RAM and 256GB of storage capacity. Combined with the Android 13 operating system and a 15,000mAh battery with DC fast charging, this device delivers fast and stable performance for extended use in the workplace.

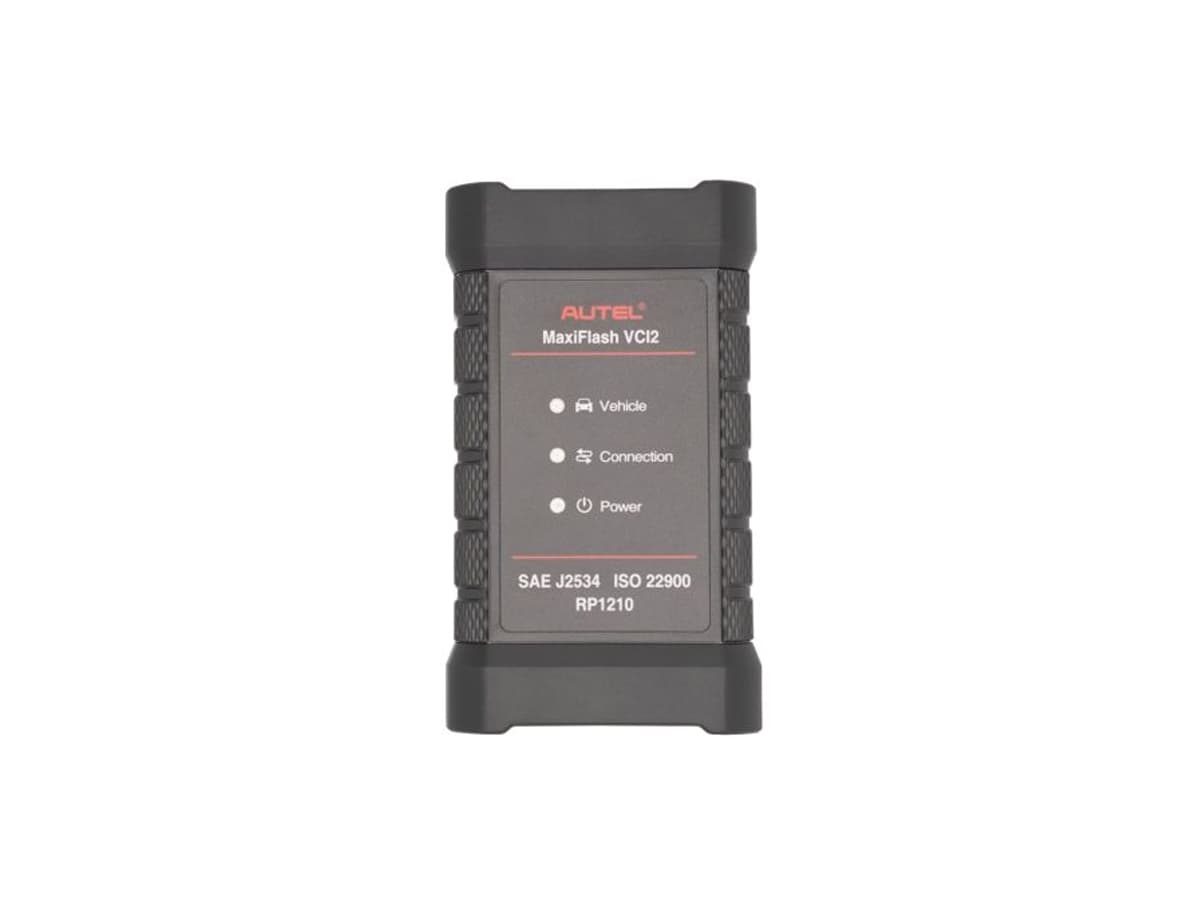

VCI2 - customized communication
The MS909 S2 comes with the VCI2, which provides full support for the latest protocols, including DoIP, CAN FD, D-PDU and J2534. This makes it suitable for diagnostics on modern vehicles. Unlike the MS919 S2 and Ultra S2, this model contains no oscilloscope and no multimeter, making the MS909 S2 primarily focused on diagnostics and service.

Diagnostic Features
The unit supports auto-scan, graphical live data display, bi-directional testing and service resets such as oil, AdBlue and DPF. Thanks to the ECU topology display, networks and modules are clearly mapped for faster fault analysis.

Additional features
The MS909 S2 offers voice assistance for voice commands and is expandable with ADAS calibration (additional hardware required). Optionally, the unit can be paired with HaynesPro or AllData for comprehensive technical documentation.

Official European version
The MS909 S2 is Autel's official European version and comes with VCI2 and all essential accessories.
